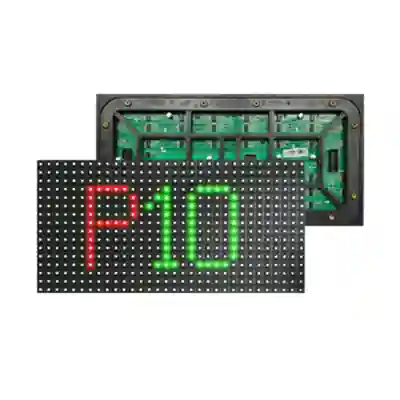

P10 Outdoor LED Display Board Module

Original price was: 4,700.00৳ .Current price is: 4,500.00৳ .

Call now: +8801717-079855
WhatsApp

Key Features:

  • 320×160 mm universal size
  • Bottom case texture design: Enhanced exterior texture
  • High protection class LED lamp
  • New PCB Design: More reliable and stable performance
  • Waterproof and moisture-proof: Front side glue-sealed for better protection
  • High Brightness & High Heat Dissipation
  • High Refresh & High Grayscale
  • Excellent Visual Experience
  • Good Compatibility: Replace outdoor P2.5 ~ P8 modules within same LC series
  • Supports 45° Tangent Angle
  • Customizable for Special Environments: Coastal, low temperature, or high humidity areas

Technical Specifications

ParameterValue
Pixel Pitch10 mm
LED TypeSMD3535
Module Resolution (W×H)32 × 16 = 512 pixels
Pixel Density10,000 dots / m²
Module Size (W×H×D)320 × 160 × 18 mm
Module Weight0.47 ± 0.02 kg
HUB TypeHUB75
Brightness4,000 – 4,500 cd/m²
Color Temperature6,500 K (adjustable 1,000 K – 9,500 K)
Viewing Angle (H/V)140° / 140°
Brightness / Color Uniformity≥ 98 %
Contrast Ratio5,000 : 1
Max Power Consumption645 W/m²
Typical Power Consumption215 W/m²
Input VoltageAC 90 – 132 V / AC 186 – 264 V (47 – 63 Hz)
Frame Frequency60 Hz
Refresh Rate3,840 Hz
Processing Depth12 – 14 bit
Video Support2K HD / 4K UHD
Life Span100,000 hours
Operating Temp / Humidity–20 °C ~ 50 °C / 10 % ~ 80 % RH (No Condensation)
Storage Temp / Humidity–20 °C ~ 55 °C / 10 % ~ 85 % RH (No Condensation)
CertificationsBIS / CE / CB / ROHS / EAC

The P10 Outdoor LED Display Board Module is one of the most widely used solutions for outdoor advertising and digital signage. With a 10mm pixel pitch, this LED module is perfect for long-distance viewing, making it suitable for billboards, stadium displays, transportation hubs, and outdoor events.

Equipped with advanced SMD technology, the P10 LED screen delivers bright, vibrant, and clear visuals, ensuring maximum impact for your advertising campaigns. Its ultra-high brightness makes it visible under direct sunlight, while the IP65 waterproof and dustproof rating provides reliable performance in all weather conditions.

The P10 Outdoor LED Display Board is built for 24/7 operation, designed with energy-efficient components that reduce power consumption while maintaining excellent image quality. It supports both synchronous and asynchronous control systems, allowing businesses to easily update content and run videos, animations, or static images seamlessly.

This module is extremely durable and offers a lifespan of up to 100,000 hours, making it a cost-effective investment for long-term outdoor advertising.

Why Choose P10 Outdoor LED Display Board?

  1. Maximum Visibility – Designed for large outdoor billboards with clear visuals from a distance.
  2. Weather Resistant – Reliable performance under rain, heat, dust, and extreme climates.
  3. Cost-Effective Solution – Balanced between affordability and performance for large-scale displays.
  4. Versatile Applications – Ideal for advertising, sports stadiums, transport terminals, and event backdrops.

Suitable Applications:

  • Highway and roadside billboards
  • Outdoor advertising boards in city centers
  • Stadium LED screens
  • Concerts and large events
  • Airport and railway station displays
  • Shopping mall exterior signage
